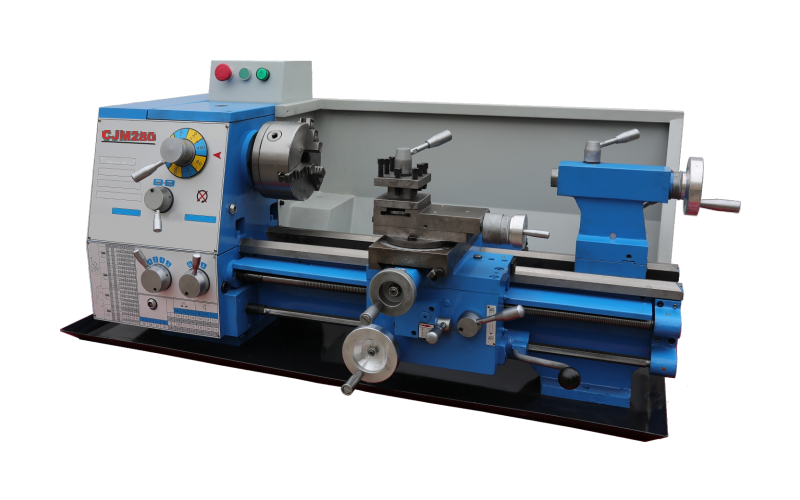

Product features
?Full gears driven in the headstock, with 8 steps of cyclic speed-changing.Invention patent technology.
?Feeding box with 12 steps of variable speeds ,covering common threading pitches .
?Longitudinal & cross auto feeding adopts inter-lock structure with good safety.
?High frequency hardened Two V-type widened guideway with rigidity.
?Inclined wedge toolpost carriage; Camlocked tailstock;Industrial lathe operation rod
ParameterMachine tool accessories
External dimensions
CooperationTechnical parameters | Model | |
CJM280/ 500 | CJM280/750 | |
Max. swing over bed | 280mm | |
Max. work-piece length | 500mm | 750mm |
Max. swing over carriage | 165mm | |
Main spindle diameter | 38mm | |
Main spindle taper | MT. 5# | |
Max. cross travel of carriage | 185mm | |
Max. travel longitudinal of toolpost | 75mm | |
Metric threads range/ No | 0.2 ~ 3. 5mm/ 18 | |
Imperial threads range/ No | 41?2 ~48T. P. I/ 34 | |
Module threads range/ No | 0.2 ~ 1.75M. P/ 16 | |
Diametrical threading range/ No | 16 ~ 120D. P/24 | |
Toolpost longitudinal feeding per spindle rotation | 0.05 ~0. 35mm/ r | |
Toolpost cross feeding per spindle rotation | 0.025 ~0. 18mm/ r | |
Max. travel of tailstock sleeve | 75mm | |
Tailstock sleeve taper | MT.3# | |
Spindle speed steps | 8 | |
Main Spindle speed scope | 90 ~ 1800 rpm | |
Main motor power | 750W | |
Net weights/Gross weights | 260/ 300kg | 270/ 320kg |
Overall dimensions( L*W* H) | 117×65×65cm | 142×65×65cm |
Packing dimensions (L*W* H) | 131×77×75cm | 153×77×75cm |
